  源代码下载

  https://github.com/comehope/front-end-daily-challenges

  代码解读

  定义dom,容器中包含6个元素,分别代表头、颈、身体侧面、翅、尾、胸:

  <divclass="cranes">

  <spanclass="head"></span>

  <spanclass="neck"></span>

  <spanclass="side"></span>

  <spanclass="wing"></span>

  <spanclass="tail"></span>

  <spanclass="belly"></span>

  </div>

  居中显示:

  body{

  margin:0;

  height:100vh;

  display:flex;

  align-items:center;

  justify-content:center;

  background-color:dodgerblue;

  }

  定义容器尺寸:

  .cranes{

  width:52em;

  height:50em;

  font-size:7px;

  }

  设置纸鹤的颜色为白色:

  .cranes{

  color:white;

  }

  画出头部:

  .cranes{

  position:relative;

  }

  .head{

  border-left:13emsolidtransparent;

  border-right:6emsolidtransparent;

  border-bottom:2emsolid;

  position:absolute;

  left:0;

  top:21;

  transform:rotate(-5deg);

  }

  把以上创建三角形的代码抽象成一个模板,然后数据都改为变量,类似于调用函数的样子:



  .cranesspan{

  border-left:calc(var(--left)*1em)solidtransparent;

  border-right:calc(var(--right)*1em)solidtransparent;

  border-bottom:calc(var(--bottom)*1em)solid;

  position:absolute;

  transform:rotate(calc(var(--rotation)*1deg));

  left:calc(var(--x)*1em);

  top:calc(var(--y)*1em);

  }

  .head{

  --left:13;

  --right:6;

  --bottom:2;

  --x:0;

  --y:21;

  --rotation:-5;

  }

  设置透明度,以便元素叠加处有折纸效果:

  .cranesspan{

  filter:opacity(0.6);

  }

  接下来就是逐个调用生成三角形的函数创建其他三角形:

  颈:

  .neck{

  --left:6;

  --right:6;

  --bottom:12;

  --x:14;

  --y:19;

  --rotation:75;

  }

  身体侧面:

  .side{

  --left:1.5;

  --right:11.5;

  --bottom:20;

  --x:18.8;

  --y:15.1;

  --rotation:20;

  }

  翅:

  .wing{

  --left:18.7;

  --right:30;

  --bottom:8;

  --x:6.7;

  --y:9.2;

  --rotation:-41.9;

  }

  尾:

  .tail{

  --left:18.6;

  --right:7.7;

  --bottom:3.9;

  --x:19.6;

  --y:38.1;

  --rotation:-126.5;

  }

  胸:

  .belly{

  --left:6.2;

  --right:1.8;

  --bottom:11.5;

  --x:17.5;

  --y:27.8;

  --rotation:-99;

  }

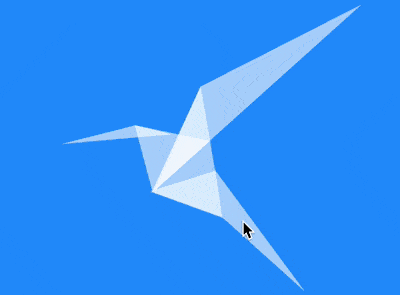

  至此,纸鹤画完。

  最后,增加一点交互效果,当鼠标悬停时,由等腰直角三角形变形成鹤:



  .cranes:hoverspan{

  animation:appear1sease-in;

  }

  @keyframesappear{

  from{

  border-left:3emsolidtransparent;

  border-right:3emsolidtransparent;

  border-bottom:3emsolid;

  position:absolute;

  transform:rotate(0deg);

  left:calc((52em-3em)/2);

  top:calc((50em-3em)/2);

  }

  }
