SpringBoot搭建聚合项目-实战记录01

工具:Spring Tool Suite 4

项目搭建

1.首先建立工作集 : Configure Working Sets -> New.. ->设置名称(如project) -> finish

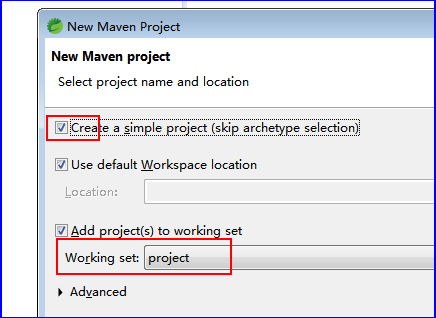

2.在工作集中创建父项目project-parent : new maven project -> 勾选"simple project" -> Next 填入组id项目id 以及最重要的选择打包方式为pom!!!

点击Finish完成, 这样一个聚合项目工作集的父项目创建完成

3.*修改pom.xml文件

项目初始的pom.xml结构如下:

官方参考文档 : https://docs.spring.io/spring-boot/docs/current/reference/html/

 1 <?xml version="1.0" encoding="UTF-8"?>
 2 <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 3     xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
 4     <modelVersion>4.0.0</modelVersion>
 5
 6     <groupId>com.example</groupId>
 7     <artifactId>myproject</artifactId>
 8     <version>0.0.1-SNAPSHOT</version>
 9
10     <!-- Inherit defaults from Spring Boot -->
11     <parent>
12         <groupId>org.springframework.boot</groupId>
13         <artifactId>spring-boot-starter-parent</artifactId>
14         <version>2.1.6.RELEASE</version>
15     </parent>
16
17     <!-- Add typical dependencies for a web application -->
18     <dependencies>
19         <dependency>
20             <groupId>org.springframework.boot</groupId>
21             <artifactId>spring-boot-starter-web</artifactId>
22         </dependency>
23     </dependencies>
24
25     <!-- Package as an executable jar -->
26     <build>
27         <plugins>
28             <plugin>
29                 <groupId>org.springframework.boot</groupId>
30                 <artifactId>spring-boot-maven-plugin</artifactId>
31             </plugin>
32         </plugins>
33     </build>
34
35 </project>

最终的父项目pom.xml如下:

<project xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.project.parent</groupId>
    <artifactId>project-parent</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>pom</packaging>

    <!-- Inherit defaults from Spring Boot -->
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.6.RELEASE</version>
        <relativePath /> <!-- lookup parent from repository -->
    </parent>

    <!-- 集中定义依赖版本 -->
    <properties>
        <java.version>1.8</java.version>
    </properties>

    <!-- Add typical dependencies for a web application -->
    <dependencies>
        <!-- SpringMVC -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- 引入aop支持 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
        </dependency>

        <!--引入测试类 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!--添加属性注入依赖 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>

        <!--支持热部署 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>springloaded</artifactId>
            <version>1.2.8.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
        </dependency>

        <!--引入插件lombok 自动的set/get/构造方法插件 -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <!--引入数据库驱动 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>

        <!--引入druid数据源 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.12</version>
        </dependency>

        <!--spring整合mybatis-plus -->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.0.6</version>
        </dependency>

        <!--spring整合redis -->
        <dependency>
            <groupId>redis.clients</groupId>
            <artifactId>jedis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.data</groupId>
            <artifactId>spring-data-redis</artifactId>
        </dependency>

        <!--springBoot整合JSP添加依赖 -->
        <!--servlet依赖 注意与eureka整合时的问题 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
        </dependency>

        <!--jstl依赖 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
        </dependency>

        <!--使jsp页面生效 -->
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-jasper</artifactId>
        </dependency>

        <!--添加httpClient jar包 -->
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
        </dependency>

        <!--引入dubbo配置 -->
        <!--<dependency> <groupId>com.alibaba.boot</groupId> <artifactId>dubbo-spring-boot-starter</artifactId>
            <version>0.2.0</version> </dependency> -->

        <!--添加Quartz的支持 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-quartz</artifactId>
        </dependency>
    </dependencies>
</project>

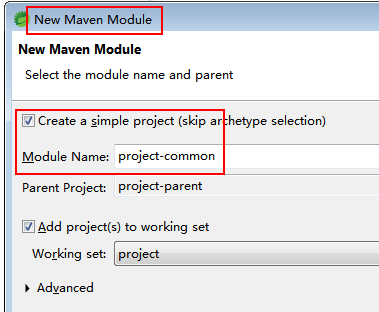

4.在工作集中建立多项目模块 new -> maven module

其中common选择jar包打包方式, manage, web 选择war包打包方式

至此, 项目结构如下 :

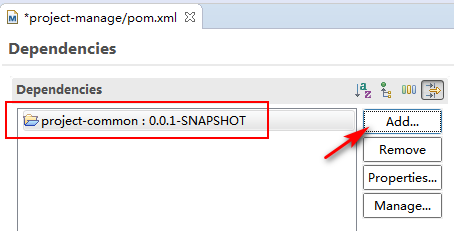

5.修改 project-manage以及 project-web 的pom.xml, 添加依赖关系和修改打包方式 :

添加maven打包插件(跳过测试类打包)

<build>
        <plugins>
            <!--跳过测试类打包 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <configuration>
                    <skip>true</skip>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

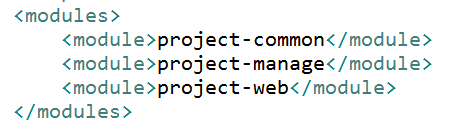

5.查看project-parent的pom.xml文件, 确认聚合项目之间的依赖关系是否正常部署
