Dijkstra算法的Java实现

  1 package main.java;
  2
  3 import main.java.utils.GraphUtil;
  4
  5 import java.util.ArrayDeque;
  6 import java.util.List;
  7 import java.util.Queue;
  8
  9
 10 /**
 11  * @Tme 2019/9/12 10:40
 12  * @Author chenhaisheng
 13  * @Email:ecjutsbs@foxmail.com
 14  */
 15 public class DijkstraTest {
 16
 17     //邻接矩阵的表示
 18     public final static double[][] GRAPH_DISTANCE = GraphUtil.getDijkstraGraph();
 19
 20     //起点到某节点的临时最短距离
 21     public static double distance[] = new double[GRAPH_DISTANCE.length];
 22
 23     //某节点的前驱节点
 24     public static int pre[] = new int[GRAPH_DISTANCE.length];
 25
 26     static int originIndex = 0, toIndex = 4;
 27
 28
 29     public static void main(String[] args) {
 30
 31         init();
 32         findDijkstraShortestPath();
 33     }
 34
 35     /*
 36     **初始化distance[]   pre[]
 37      */
 38     public static void init() {
 39
 40         for (int i = 0; i < distance.length; i++) {
 41             if (i == originIndex) {
 42                 distance[i] = 0.0;
 43                 continue;
 44             }
 45             distance[i] = Double.MAX_VALUE;
 46         }
 47
 48         for (int i = 0; i < pre.length; i++) {
 49             pre[i] = -1;
 50         }
 51     }
 52
 53     public static void findDijkstraShortestPath() {
 54
 55         //queue用于保存尚待搜索的节点
 56         Queue<Integer> queue = new ArrayDeque<>();
 57
 58         //起始，将起始节点添加到queue
 59         queue.add(originIndex);
 60
 61         while (queue.size() != 0) {
 62
 63             Integer currentIndex = queue.poll();
 64
 65             //获取当前节点的out-edges
 66             List<Integer> neighbours = getNeighbours(currentIndex);
 67
 68             for (int i = 0; i < neighbours.size(); i++) {
 69
 70                 //获取邻居节点的索引值
 71                 int neighbourIndex = neighbours.get(i);
 72
 73                 //若起点经当前节点到邻居节点的距离 比直接到邻居节点的距离还小
 74                 if (distance[currentIndex] + getDistance(currentIndex, neighbourIndex) < distance[neighbourIndex]) {
 75
 76                     //更新起点到邻居节点的距离
 77                     distance[neighbourIndex] = distance[currentIndex] + getDistance(currentIndex, neighbourIndex);
 78
 79                     //设置下一个节点的前驱节点为当前节点
 80                     pre[neighbourIndex] = currentIndex;
 81
 82                     //由于distance[neighbourIndex]已经改变，因此需要重新搜索neighbourIndex
 83                     queue.add(neighbourIndex);
 84                 }
 85             }
 86         }
 87
 88         //输出从originIndex到toIndex的路径
 89         printPath(pre, originIndex, toIndex);
 90     }
 91
 92
 93     public static void printPath(int pre[], int from, int to) {
 94
 95         //栈
 96         Deque<Integer> path = new ArrayDeque<>();
 97
 98         path.push(to);
 99
100         int preIndex = pre[to];
101         while (preIndex != from) {
102             path.push(preIndex);
103             preIndex = pre[preIndex];
104         }
105
106         path.push(from);
107
108         while (!path.isEmpty()) {
109             System.out.print(path.poll() + (path.size() > 0 ? "------>" : " "));
110         }
111         System.out.println(" ");
112     }
113
114
115     //获取当前节点所有的out-edges
116     public static List getNeighbours(int index) {
117
118         List<Integer> res = new ArrayList();
119
120         //距离不为Double.MAX_VALUE,代表与当前节点连通
121         for (int i = 0; i < GRAPH_DISTANCE[index].length; i++) {
122             if (GRAPH_DISTANCE[index][i] != Double.MAX_VALUE)
123                 res.add(i);
124         }
125         return res;
126     }
127
128     public static double getDistance(int from, int to) {
129         return GRAPH_DISTANCE[from][to];
130     }
131 }

 1 package main.java.utils;
 2
 3 /**
 4  * @Tme ${DATA} 19:10
 5  * @Author chenhaisheng
 6  * @Email:ecjutsbs@foxmail.com
 7  */
 8 public class GraphUtil<T> {
 9
10     public static double[][] getDijkstraGraph(){
11         double max=Double.MAX_VALUE;
12         double[][] graph={
13                 {max,5,max,7,15},
14                 {max,max,5,max,max},
15                 {max,max,max,max,1},
16                 {max,max,2,max,max},
17                 {max,max,max,max,max}
18         };
19         return  graph;
20     }
21 }

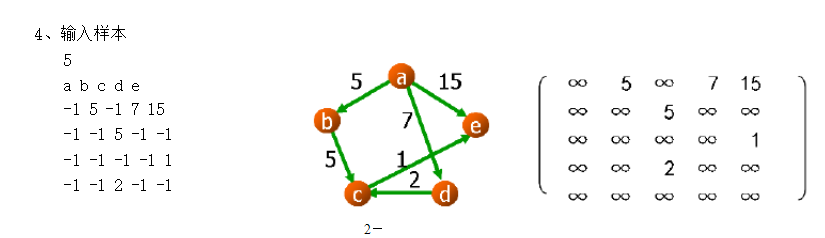

对应的图：
